Double chaîne de production de PVC Waterbar de la vis 160kg/H 20m

Informations de base
Lieu d'origine: Qingdao
Nom de marque: XINRUI
Certification: CE,ISO
Numéro de modèle: SJSZ
Quantité de commande min: 1 ensemble
Prix: USD35,000-36,000/Set
Détails d'emballage: Pellicule rigide en bois de cas et de PE
Délai de livraison: 35DAYS
Conditions de paiement: L/C, D/P, T/T
Matériel: PVC+DOP+Caco3+Additives Moteur: Siemens
Inverseur: ABB Contacteur: Schneider
Contrôleur de température: OMRON Trou de poinçon: Disponible
À vis: double vis Période de garantie: 1 an
Surligner:

chaîne de production waterbar de PVC 160kg/H

,

chaîne de production waterbar de PVC de 20m

,

tuiles en plastique de 20m faisant la machine

Concrete Joint Internal PVC waterbar production Line

Soft PVC Waterstop Making Machine:

PVC Waterstops are produced from high-grade PVC compounds. They are designed for sealing movement and construction joints in reinforced concrete structures.

PVC Waterstops, used in concrete for the sealing of construction and expansion joints, are embedded in concrete, across and along the joint, to form a continuous watertight diaphragm that prevents the passage of fluid through the joint.



Main Parameters Of PVC Waterstops:

Width:150-400mm

Length: Fixed-length cut
Output: 150-160kg/h

Dimensions:According to the drawing



Location Indoor
Power 3-Phase,380V,50Hz
Total installed capacity ≥100KVA
Cooling water ≤25ºC ≥0.3MPa, outdoor water tank: 10-20m3, water circulated with production line
Compressed air 0.3 m³ /min, >0.5MPa,
Equipped with 3kw air compressor
Production Line Dimension 20m*2.5m*2.8m



PVC Waterstops Making Machine Description:

1. Our screws have excellent mixing and plasticization capacity with long service life and lower energy usage.

2. Die material adopts 3Cr17 of high corrosion resistance and optimized shaping

3. Our machine is with punching machine to make the copper ring for the punched hole

4. Winder adopts double working statio

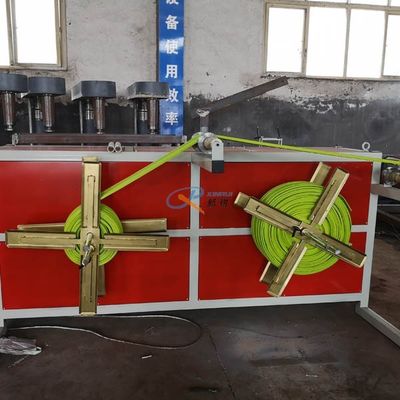

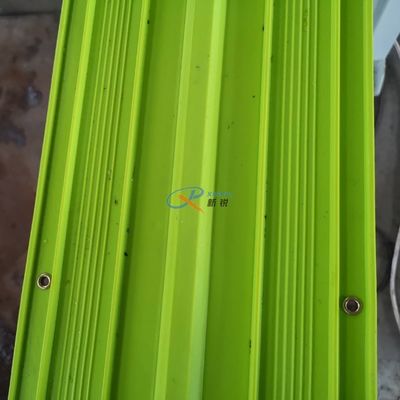

PVC Waterstops Making Machine Pictures:

Double chaîne de production de PVC Waterbar de la vis 160kg/H 20m 0

Double chaîne de production de PVC Waterbar de la vis 160kg/H 20m 1

Double chaîne de production de PVC Waterbar de la vis 160kg/H 20m 2

Double chaîne de production de PVC Waterbar de la vis 160kg/H 20m 3









Company introduction:

Double chaîne de production de PVC Waterbar de la vis 160kg/H 20m 4

Qingdao Xinrui Plastic Machinery is a professional plastic extrusion machine manufacturer with more than 10 years experience.

We are engaged into plastic mat production line,plastic board production line,plastic pipe production line,plastic profile production line as well as various kinds of pelletizing production line.Our company could supply turn-key project as feasibility report,workshop plannning,technical support ,follow-up manufacturing,testing,delivery,installation and training.We could delivery our engineers to your factory for after-sales service.We are exporting various kinds of machine to more than 20 countires as India,Pakistan,Israel,Bulgaria,Russia,Uzbekistan,Egypt,Vietnam,Thailand,Indonesia,Malaysia,Tanzania,Oman and so on.Our company put the reputation and quality in the frist place and make an utmost effort to supply our best service.

Look forward to getting your inquiry and hope we could cooperate on the basis of win-win situation.

FAQ:

Q1: Your company is a trading company or a machine manufacturer?

A1:Our company is a plastic machinery manufacturer which is engaged into this trade more than 10 years.As a manufacturer,we could supply our machine,service,technical support and maintenance directly and it is more convenient.

Q2:How to get an accurate offer?

A2:Because our offer and technical specification is associated with your final product and requested capacity,we will choose the right model of extruder and mould after understanding all the information,then we could supply our plan.We could fully exchange information by Email,whatsapp or wechat.

Q3:Where is your factory and which port is the nearest to your factory?

A3:My factory is in Qingdao city,Shandong Province and it would take about 1hour from our factory to Liuiting Airport.

The nearest port is Qingdao port.

Q4:How long is the delivery time?

A4:Generally it will take 35-45days.

Q5:Could you send your engineers to our factory?

A5:Yes,we will send our engineers to your factory for installation,commissioning and training after machines arrive at your factory.In addition,if you need our engineers available in the future,we also could send our engineers.
